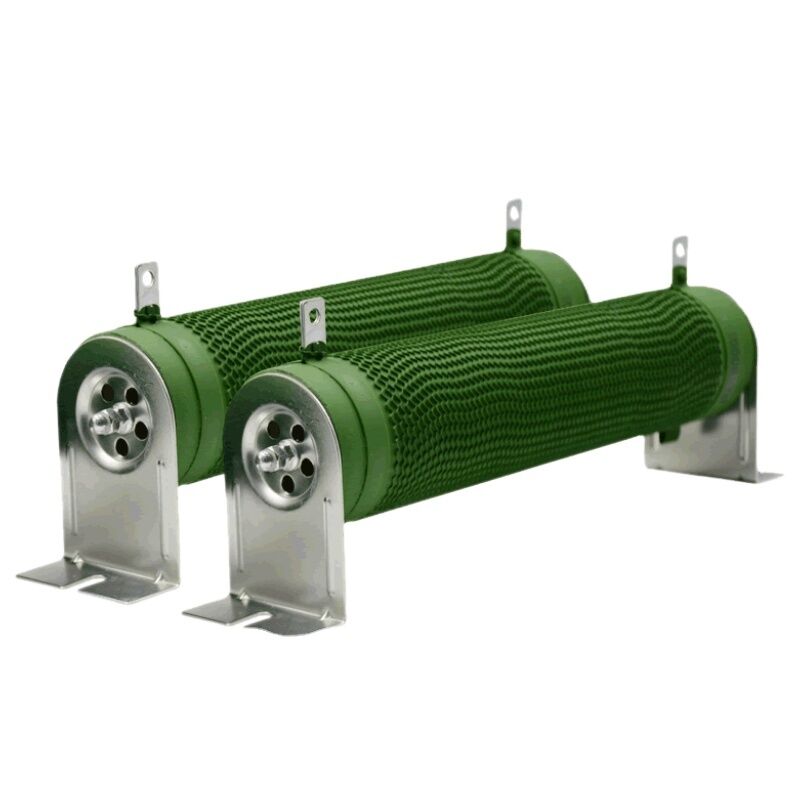

6000W High-power Ceramic Wirewound Braking Resistor with Variable Resistance

Name: 6000W High-power Ceramic Wirewound Braking Resistor with Variable Resistance
Brand: Sichuan Qixing Electronics Co., Ltd.
SKU: Rx20
Price: 2.25 USD
Availability: InStock

Herkunftsort	Sichuan, China
Markenname	B0NENS
Modellnummer	Rx20

Produkt-Details

Widerstandstoleranz:

± 5%

Temperaturkoeffizient:

±200ppm/°C

Widerstandsbereich:

0R22~43K

Nennleistung:

10W ~ 20000W

Betriebstemperatur:

-55°C ~ +275°C

Montageart:

Durch Loch

Leitungslänge:

20mm

Fallgröße:

7.5 mm x 10 mm

Material:

Wirewund

Gerätetyp:

RX20 Drahtwiderstand

Leistung 40 W. Abmessungen:

20*90mm

Leistung 50 W. Abmessungen:

28*90mm

Leistung 80 W. Abmessungen:

28*140mm

Leistung 200 W. Abmessungen:

28*267mm

Leistung 300 W. Abmessungen:

40*265mm

Hervorheben:

6000W Wirewound Resistor

Ceramic Composition Braking Resistor

Variable Resistance High-power Resistor

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

Produkt-Beschreibung

High-power Ceramic Resistors 6000W Wirewound Braking Resistor

Product Description

The RX20 wirewound resistor is a premium device manufactured by Yageo, delivering highly reliable performance for diverse applications. This component features a compact 7.5mm x 10mm case size and is designed for straightforward circuit board soldering with 20mm lead length. Utilizing through-hole mounting technology, the RX20 resistor ensures easy installation and maintenance. With its superior performance characteristics and robust construction, the RX20 device represents an excellent choice for demanding electronic applications.

Product Features

Specification Parameters

Parameter	Description
Device	RX20 Wirewound Resistor
Material	Wirewound
Operating Temperature	-55°C ~ +275°C
Resistance Tolerance	±5%
Temperature Coefficient	±200PPM/°C
Resistance	0R22~43K
Rated Power	10W~20000W

Product Dimensions

Power	Style	L1 (±2)	L2 (±2)	L3 (±2)	D (±2)	B	B1	H (±3)	H1
40W	20*90	90	127	103	20	4.3	20	24	47
50W	28*90	90	143	115	28	6	28	32	66
80W	28*140	140	193	165	28	6	28	32	66
100W	28*167	167	220	192	28	6	28	32	66
150W	28*215	215	268	240	28	6	28	32	66
200W	28*267	267	320	292	28	6	28	32	66
300W	40*265	265	309	284	40	9	40	40	82
400W	40*282	282	326	302	40	9	40	40	85
500W	40*330	330	370	349	40	9	40	40	85
600W	50*330	330	370	347	50	7	50	41	97
800W	60*330	330	379	344	60	8	60	58	119
1KW	60*400	400	450	415	60	8	60	58	122
1.2KW	60*430	430	480	452	60	8	60	58	122
1.5KW	70*430	430	495	462	70	8	70	67	132
2.5KW	80*430	430	490	455	80	8.5	80	70	150
3KW	90*430	430	490	455	90	9	90	76	150
3.5KW	100*430	430	510	473	100	9.5	100	75	157

Packaging & Transportation
