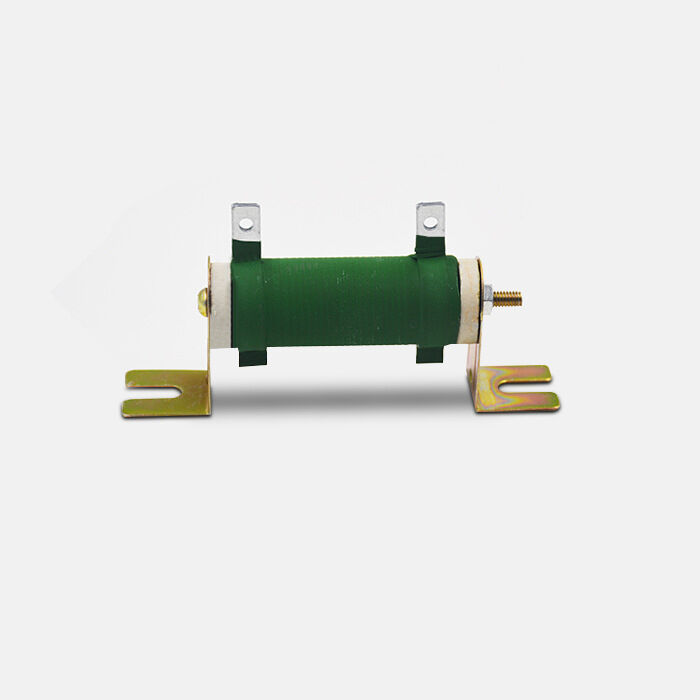

2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition

Herkunftsort	Sichuan, China
Markenname	bonens
Modellnummer	Keramik 2000W 8 Ohm

Produkt-Details

Widerstand:

1Ω-10KΩ

Widerstandstoleranz:

± 5%

Typ:

Festwiderstand

Technologie:

Keramische Zusammensetzung

Pakettyp:

Durch Loch

Nennleistung:

2000 Watt

Temperaturkoeffizient:

± 250 ppm

Abmessungen D:

60 ± 2 mm

Abmessungen L1:

510±2 mm

Abmessungen L2:

540 ± 5 mm

Abmessungen L3:

560 ± 3 mm

Abmessungen N:

16±1 mm

Abmessungen Φ:

6 ± 1 mm

Referenzgewicht:

2,3 kg

Widerstandgenauigkeit:

± 5%

Hervorheben:

2000W Wirewound Resistor

8 Ohm Ceramic Resistor

Ceramic Composition High Power Resistor

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

Produkt-Beschreibung

High Power 8 Ohm Ceramic Resistor 2000W

Product Features

Product Specifications & Dimensions

Rated Power (W)	D±2 (mm)	L1±2 (mm)	L2±5 (mm)	L3±3 (mm)	N±1 (mm)	Φ±1 (mm)	Reference Weight (kg)	Resistance Accuracy	Temperature Coefficient
10W	14	40	/	/	5	3	0.02	±5%	±250ppm
15W	14	45	/	/	5	3	0.02
20W	16	50	85	100	6	3	0.05
25W	20	50	85	100	6	3	0.05
30W	20	70	105	120	6	3	0.06
40W	20	90	125	140	6	3	0.08
50W	28	90	130	150	9	4	0.1
75W	28	140	180	200	9	4	0.15
100W	28	170	210	230	9	4	0.18
150W	28	215	250	270	9	4	0.22
200W	28	267	300	320	9	4	0.23
250W	28	267	300	320	9	4	0.32
300W	40	267	287	307	12	6	0.32
400W	40	300	320	240	12	6	0.36
500W	50	300	320	340	14	6	0.55
600W	50	300	320	340	14	6	0.95
800W	60	300	330	335	16	6	1
1000W	70	300	330	335	16	6	1.2
1200W	70	360	390	415	16	6	1.6
1500W	70	420	450	470	16	6	2
2000W	60	510	540	560	16	6	2.3
2500W	70	510	540	560	16	6	2.7
3000W	80	430	470	500	16	6	3
4000W	100	400	440	465	16	7	3.5
5000W	100	500	540	560	16	7	4.5
6000W	100	600	640	660	16	7	5.8
8000W	150	600	690	740	25	15	18
9000W	150	600	690	740	25	15	18
10KW	150	600	690	740	25	15	18

RX20/RXG20 Load Resistor & Braking Resistor

High-power corrugated wire-wound resistor suitable for braking, load, inverter discharge, and aging load applications. Available resistance values from 0.1Ω to 10kΩ.
