linear potentiometer
3266P Metallglasglaze Präzisions-Multi-Turn-Potentiometer 10K einstellbarer Widerstand
product name: 3266P Metal Glass Glaze Precision Multiturn Potentiometer 10K Adjustable Resistor product description: Common specifications and models of 3266 series trimmer potentiometers are 3266W, 3266X, 3266P, 3266Y, 3266Z and other models. Their underlying parameters are consistent. But their specifications are somewhat different. 3266 potentiometer is an indispensable electronic component in electronic products, not only widely used, but also cost-effective, relatively
3266W Metallglas verglaster Präzisions-Multi-Turn-Trimmer-Potentiometer 1k 2k 5k 10k
product name 3266 Series Precision Multiturn Metal Glass Glaze Adjustable Potentiometer product description Common specifications and models of 3266 series trimmer potentiometers are 3266W, 3266X, 3266P, 3266Y, 3266Z and other models. Their underlying parameters are consistent. But their specifications are somewhat different. 3266 potentiometer is an indispensable electronic component in electronic products, not only widely used, but also cost-effective, relatively low cost.

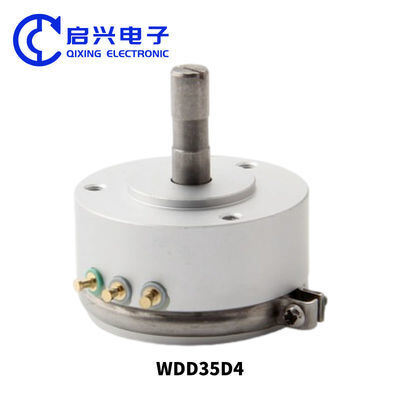

Leitfähiger Kunststoffpotentiometer Winkelsensor WDD35D-4 1K 2K 5K10K 0,1%
product name WDD35D-4 potentiometer is a precision conductive plastic angular displacement sensor Mechanical Specifications Mechanical Angle: 360° continuous rotation. Starting Torque: ≤1×10^-4 N·M. Bearings: Utilizes two sets of ball bearings for smooth rotation. Shaft: Made of stainless steel for corrosion and wear resistance. Housing: Aluminum alloy with oxidized surface treatment (silver color) for aesthetics and durability. Performance Specifications Resistance Values:
Bones wxd3590 10 Drehungen 5k 10k 20k 50k 100k Federrücklaufpotentiometer
Bonens Wxd 3590 10 Turns 5k 10k 20k 50k100K Spring Return Potentiometer Product Description Specification Electrical Characteristics Range of nominal resistance 100~100KΩ Resistance tolerance ±2%, ±5% Terminal resistance ≤2%R or 5Ω Linear accuracy ±1%, ±0.5% Electrical angle 3600°±10° Insulation resistance ≥ 200MΩ Withstand voltage 500V (DC or AC peak value) Environment Characteristics Rated power 2W (70°C) Temperature range -55°C~+125°C TCR ±100×10-6/°C Temperature shock ΔR≤
1000W B100K B500K B470K Linearrotationspotentiometer für Lichtdämpfer der WH116AK-Serie
product name WH116AK R16P2S Vertical Terminal Pcb Mount Dimmer Light Rotary Potentiometer WIth 10A High Current Push Press Switch lectrical Properties Operating Temperature Range: Wide range, e.g., (-20℃) to (100℃), ensuring operation under various environmental conditions. Switch Rating: AC 250V 10A, capable of handling high load currents and voltages. Switch Contact Resistance: Less than 50mΩ, ensuring good switch contact and reduced energy loss. Rated Power: 0.2W, suitable
3540S-2-104L 10 Drehpotentiometer 3540S 0,5W 5% 1K 5K 10K 47K 100K Präzisions-Multi-Turn Wirewound Potentiometer
10K ohms Multi-turn potentiometer wirewound potentiometer 3540 Product Description Specification Electrical Characteristics Range of nominal resistance 100~100K Resistance tolerance ±5% Terminal resistance ≤2%R or 5 Peak noise ≤100 Linear accuracy ±0.25% Electrical angle 3600°±5° Insulation resistance ≥ 200M Withstand voltage 500V (DC or AC peak value) Environment Characteristics Rated power 2W (70°C) Temperature range 55°C~ 125°C TCR ±100x10-6/°C Temperature shock R≤±3%R
BONENS WXD4-23 3W Multi Turn Wirewound Potentiometer 1K 1K5 2K2 3K3 4K7 5K6 6K8 10K 22K Ohm
product name WXD4-23 Precision Potentiometer Power: 3W Type: Multi-turn Wirewound Potentiometer Number of Turns: 10 Turns Shaft Diameter: 6mm Shaft Length: 25mm Outer Diameter: 40mm Rotation Angle: 3600° (Note: Typically means 360°, possibly a redundancy in statement but kept for accuracy) Packaging: 5 pcs/box Resistance Tolerance: ±2%~±5% Product size Specification parameters: Place of Origin China China sichuan Model Number WXD4-23 Type Rotary Potentiometer D/C brand-new
Bonens 3540S-1-502L Potentiometer Wirewound 5 KOhms 10 Drehungen
10K ohms Multi-turn potentiometer wirewound potentiometer 3540 Product Description Specification Electrical Characteristics Range of nominal resistance 100~100K Resistance tolerance ±5% Terminal resistance ≤2%R or 5 Peak noise ≤100 Linear accuracy ±0.25% Electrical angle 3600°±5° Insulation resistance ≥ 200M Withstand voltage 500V (DC or AC peak value) Environment Characteristics Rated power 2W (70°C) Temperature range 55°C~ 125°C TCR ±100x10-6/°C Temperature shock R≤±3%R
3540 Multi Turn Wirewound Präzisionspotentiometer 3540S-1-103L 10K Ohm 2w 10 Dreh
3540 Multi-turn Wirewound Precision Potentiometer 3540S-1-103L 10K ohm 2w 10 turn product name: 3540 50k ohms Multi-turn Wirewound Precision Potentiometer WXD3540 2w 10 turn product description: Part Number Resistance (Ω) Resolution 3540S-1-201L 200 .042 3540S-1-501L 500 .031 3540S-1-102L 1,000 .027 3540S-1-202L 2,000 .021 3540S-1-502L 5,000 .021 3540S-1-103L 10,000 .019 3540S-1-203L 20,000 .014 3540S-1-503L 50,000 .011 3540S-1-104L 100,000 .008 Product Features: 1.Bushing
