C3305 Einstellbares Trimmerpotentiometer Einringglasglasglasspalte Oberflächenhalter
C3305 Einstellbares Trimmerpotentiometer Einringglasglasglasspalte Oberflächenhalter
Key Attributes
Markenname:BONENS
Model Number:C3305
Place of Origin:Sichuan, China
Standard Packaging:Kartonverpackung
Product Summary
Produkt-Details
Hervorheben:
Glasur mit einem Ring
,PCB-Patch-Einbau
,100R bis 1M Reichweite
Range Of Nominal Resistance:
100Ω ~ 1MΩ
Resistance Tolerance:
± 25%
Terminal Resistance:
≤ ± 1% R oder 10Ω
Contact Resistance Variation (CRV):
≤ ± 2% R
Insulation Resistance:
≥ 500MΩ (100V Wechselstrom)
Max Working Voltage:
50 V
Effective Electrical Travel:
≥ 210°
Rated Power:
0.1W (maximal 300 V)
Temperature Range:
-55°C bis 125°C
TCR:
± 250x10-6/°C
Collision (390m/s2, 4000 Times):
R ≤ ± 1% R
Vibration (10-500hz, 0.75mm, 6h):
R≤±1%R, Uab/Uac≤±2%R, elektrische Unterbrechung≤100S
Temperature Variation (-55°C/30min, 125°C/30min, 5 Cycles):
R≤±2%R, Uab/Uac≤±2%R
Climate Category (iec68-2-2):
R≤± (10%R 0,1), Dämmungswiderstand ≥ 100M
Electrical Endurance (0.5w, 1000h):
R≤± (5%R 0,1)
Mechanical Endurance (200 Cycles):
R≤± (20%R 0,5)
Steady Damp Heat (iec68-2-3, Ca, 96h):
R≤± (10%R 0,1), Dämmungswiderstand ≥100M
Total Mechanical Travel:
360
Starting Torque:
2 bis 20 mN.m
Soldering Conditions:
240°C bis 260°C ((5 Sekunden)
Standard Pacdage:
2000 Stück pro Walze
Resistance Range:
100 Ohm bis 1M
Technology:
Glasglasur
Mounting:
Aufputz-Patch
Application:
Anpassung der Leiterplattenschaltung
Produkt-Beschreibung
Detaillierte Spezifikationen & Funktionen
|
|
||||||
|
|
||||||
|
|
||||||
|
|
||||||
|
|
||||||
|
|
||||||
|
|
||||||
VERWANDTE PRODUKTE
3266W Metallglas verglaster Präzisions-Multi-Turn-Trimmer-Potentiometer 1k 2k 5k 10k
product name 3266 Series Precision Multiturn Metal Glass Glaze Adjustable Potentiometer product description Common specifications and models of 3266 series trimmer potentiometers are 3266W, 3266X, 3266P, 3266Y, 3266Z and other models. Their underlying parameters are consistent. But their specificati...

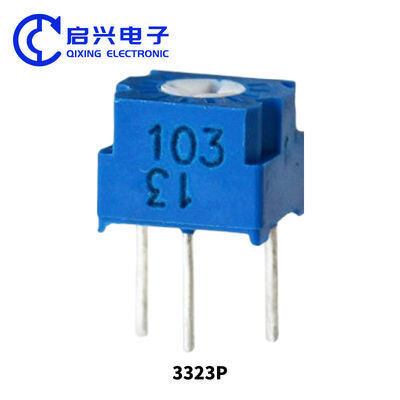

3323P Einzeldreh-Metallglasglas Trimmer Potentiometer 5k Präzisionsverstellbarer Widerstand
